Vertical 3d Cmykw Uv Wall Printer Machine Price
Tanyu Technology: a Professional Wall Printer Manufacturer
Our company was established in 2012 and is an innovative enterprise focusing on the field of wall printing technology.
Variety of Products
We are committed to providing customers with high-quality wall painting machines and large-format wall decoration solutions. Our products include wall printers, floor printers, wall and floor all-in-one printers, vertical 3D wall printers, vertical wall printers with wheels etc.
Strong Production Capacity
We have two professional production lines and an independent R&D department. We can provide customers with customized machines and improve equipment as the market changes. Usually, it only takes 5 days for standard machines to be delivered, and 9 to 12 days for customized machines.
Strict Quality Standards
All the suppliers we work with are world-class. Each machine has precise assembly process and strict time control. At the same time, we will conduct strict testing and inspection on each machine before shipment to ensure quality and reliability.
Multiple Professional Certifications
At present, we have many international certifications such as ISO9001 certification, CE certification, SGS certification, etc., and have also obtained more than 10 patent certificates. We have provided services to 1000 customers and received good reviews.

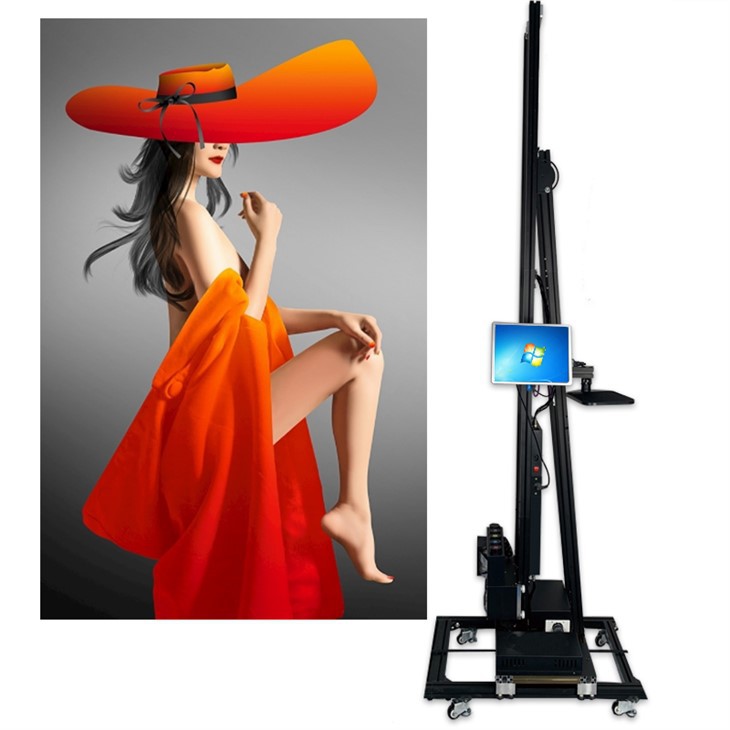

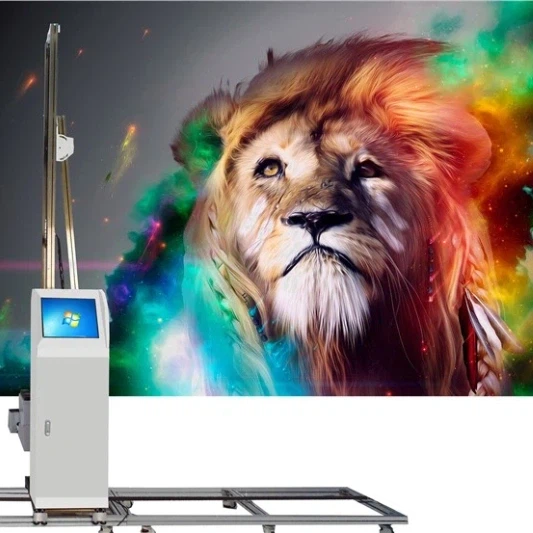

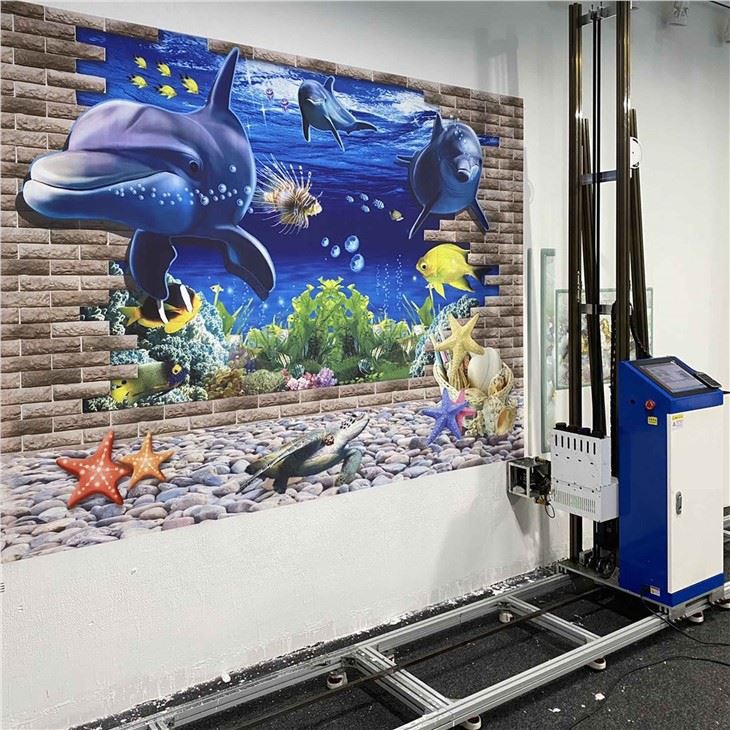

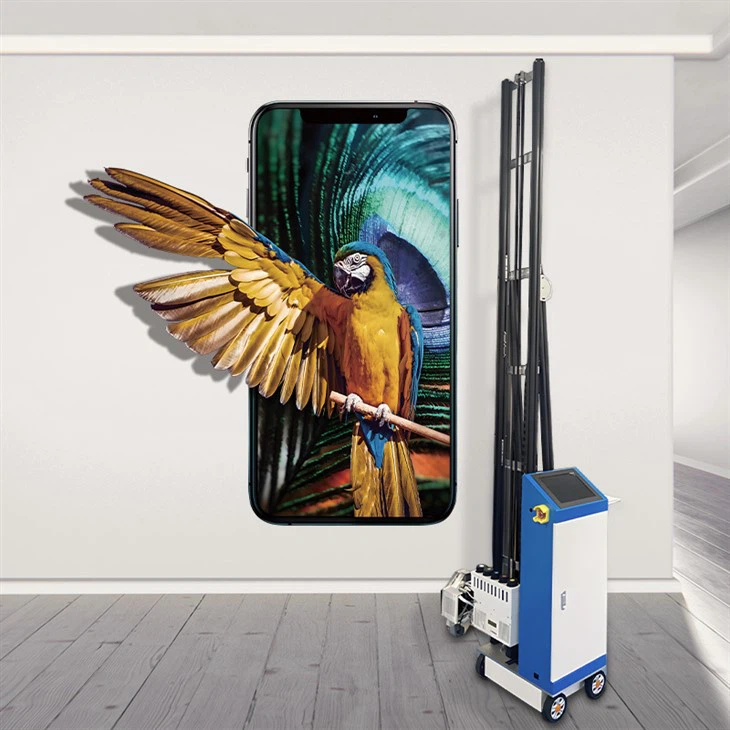

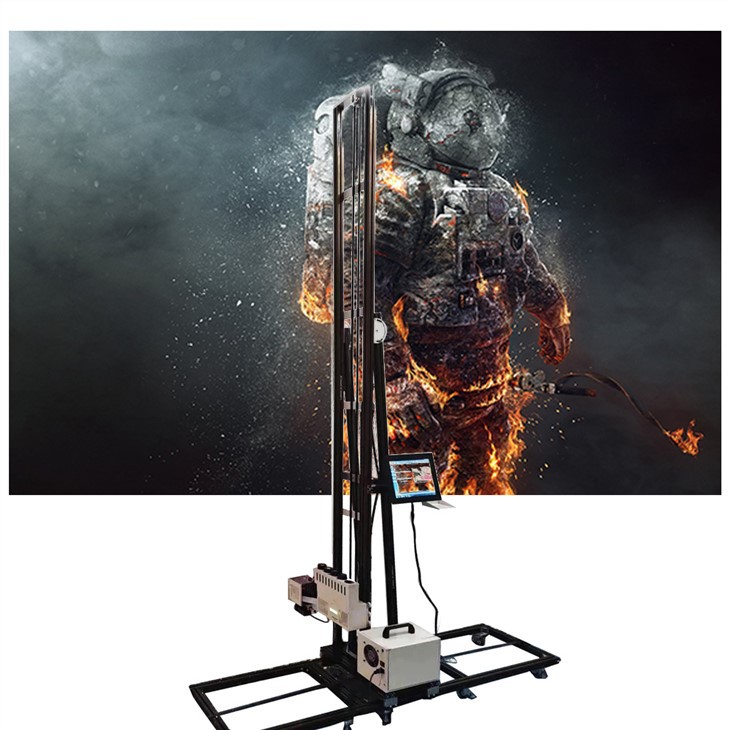

Vertical 3d Cmykw Uv Wall Printer Machine Price
UV printer for walls and vertical surfaces Wall printer with UV technology A new dimension of images The UV wall printer is a modern device using direct surface printing technology. Selected images are applied using nozzles located in the print head, which move approx. 1cm in front of the...

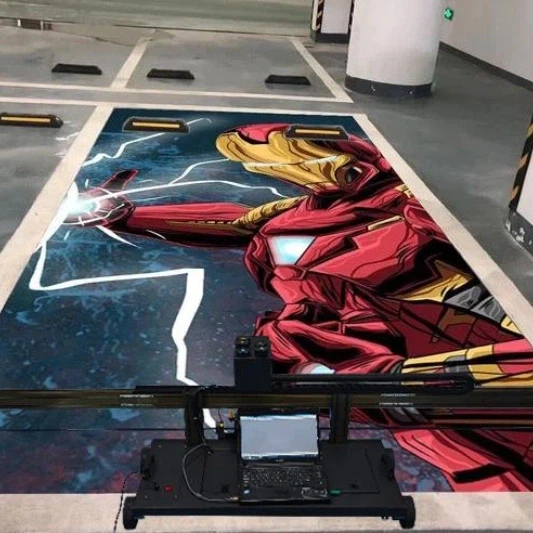

High Speed 3D UV Floor Printing Machine
TANYU advertising floor printer can print directly on the floor, the machine width can be customized according to customer requirements. Our standard print to floor width is 2.5m and print width is 2.1m. The floor press can print any format, any size photos, printing resolution up to 1440x2880dpi.
The machine weight is only 40kg, the ink jet printer adopts piezoelectric nozzle imported from Japan. The paint is clear and bright, the machine design is smooth, the body can be disassembled, and it is easy to carry and use. This machine is suitable for all kinds of wall coating, such as wall putty powder, paint wall, tile wall and so on.
High Speed Wall Printing Machine
Looking for the ultimate printing speed? Then the industrial high efficiency wall painter machine is your best choice. Installed with three EPSON DX10 printer head, the TWP1000-F is designed for customers with efficient printing speeds up to 15 square meters per hour.
Outdoor Application Vertical Wall Printing Machin
Outdoor Application Vertical Wall Printing Machine is an efficient, intelligent painting device that can quickly apply graphics, text, images, and other content to walls. It uses digital image recognition technology and an automatic control system to automatically adjust the brushing force and speed, ensuring precise and high-quality results.
High Resolution Vertical Wall Printer
Want to pursue faster speed and higher precision printing results? Then the upgraded TWP1000-S was created. Compared with the standard TWP1000, TWP1000S is equipped with a more powerful 7-th generation EPSON DX7 printer head. The printing effect is more exquisite, the printing speed increases by nearly 50%, and the service life of the sprinkler head is up to 10,000 square meters.

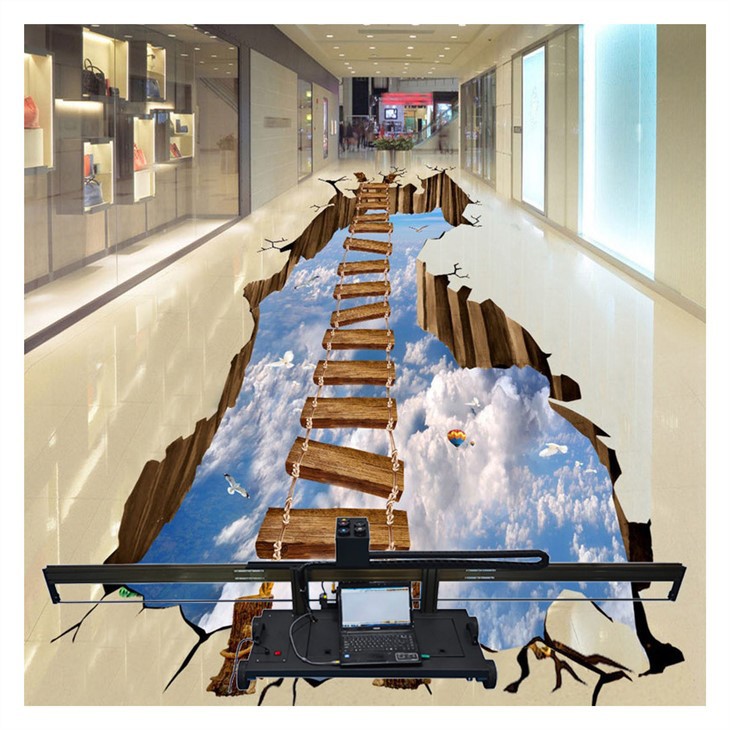

Automatic 3D Floor Printer Machine
Floor printer is a new digital printing system designed specifically to draw any graphics on a floor surface. TFP uses UV printing technology to print on floors in a variety of materials, including wood flooring, cement, tile, asphalt, brick, lime, epoxy, etc. With the help of a tracking system, TFP can be printed on curved and uneven brick surfaces.

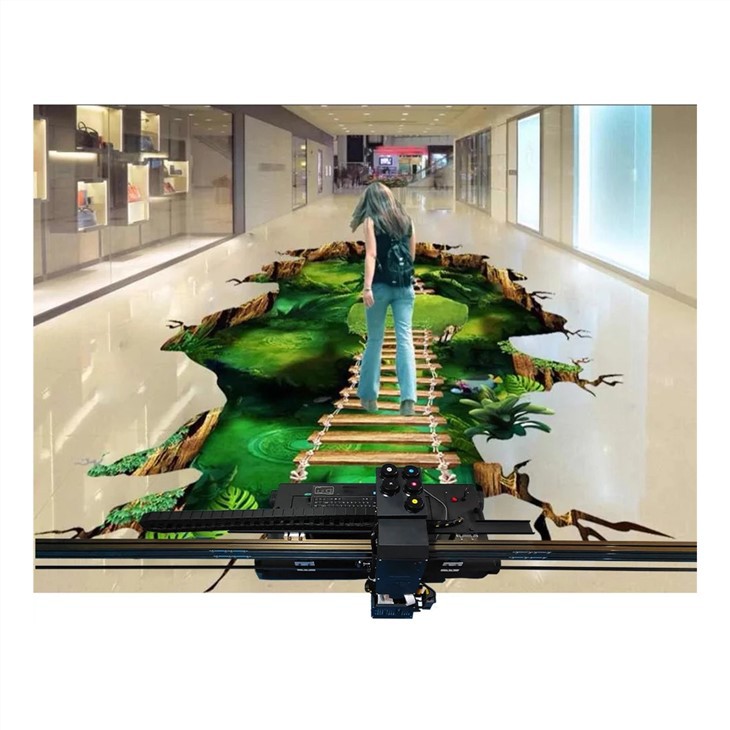

High Resolution UV Floor Printer Machine
The floor printing machine can print any format photo in any size, printing resolution up to 1440x 2880dpi. If want to protect the printed photo on floor better, that could paint a layer of epoxy resin varnish. Just input the picture and set the size on the computer desk, and one person can print out colorful patterns.
Integrated Wall And Floor Printer
Compared with hand painting, the printing speed of wall and floor painting machine is faster, and the maximum printing speed can reach 8-15 square meters/hour. UV curing system with air-cooled UV lamp, suitable for printing on a variety of materials. All our machines will be tested by technicians before shipment to confirm that the machines are in good condition upon arrival at the customer.
In today's technological age, traditional wall painting methods are being revolutionised by wall printers that offer fast and impressive results. Its applications are nearly limitless because it prints any digital image on virtually any surface. Whether you're looking to start a 3D wall printing business, would like a printed wall mural or are interested in owning an exclusive territory, the opportunities are endless. It is much faster than traditional wall painting methods, and it can complete even large walls in a short time. Some models can be equipped with the ability to create 3D visual effects, resulting in more realistic and textured prints. With advancing ink technologies, machines can offer a wider palette of colours. This means more vibrant and richer prints.
*Creating the Digital Design: The first step is to create a digital design in a computer environment. This design can be a mural, logo, text or any graphic.
*Wall Mounting of the Machine: The wall printing machine is usually mounted on a vertical rail system. This rail system allows the machine to move up and down the wall.
*Print Start: After the machine is mounted on the wall, the digital design is transferred to the machine. Then the printing process starts. During printing, the machine makes precise movements to accurately transfer the design to the wall.
*Inkjet Technology: Wall printing machines generally utilise inkjet technology. Thanks to this technology, the machine sprays tiny ink droplets onto the wall with high precision.
*Colour Selection and Calibration: Modern wall printing machines offer a wide range of colour options. Before printing, the machine calibrates the colours to be used, resulting in vibrant and accurate colour tones.
Wall Printer Fundamentals
Printhead is the component that sprays the inks onto the surfaces. A fit printhead is the difference between a mural printing machine that works well…and one that fails. The printhead is so important. First, it sets the precision and efficiency. Second, not all printheads are suitable for vertical surfaces.
Well, they are water-based and UV-curable inks. As wall printer machines are designed to use only one type of ink each, so they also defined the types of wall printers. In other words: the difference between the inks is just the difference between the two machines.
You may have noticed that some vertical printing machines have a touch screen, and some don't. The screen has a built-in PC, therefore you can control the machine either with a mouse or directly using your hand. With the second type, you can use your own laptop or tablet to operate with a cable connected. There's also a type that uses wireless control, which has a certain requirement for data transmission. All these methods can achieve the same effect, and there is not much difference in actual printing and experience.
RIP is short for "Raster Image Processor". A RIP software help convert images files into formats that a printer can read and print. Same thing with the printer for walls. The RIP software is usually provided along with the machine. Most wall printers made in China use a third-party RIP software named "MainTop".
After the image was processed with RIP, it's time to move on to the only other software. (Yes, to finish a wall print you only need to deal with two softwares.) Here comes the printing control software. On it you will have to complete the setup for printing, including confirming the actual size of final print, where exactly on the wall to print fro and the speed model. It's also where you adjust the printer's distance to the wall and pause the process as in work. Driven by motherboard, control software incorporates advanced functions to reach reliable and efficient performance.
Below, we will explore the common types of wall printers available in the market.
Inkjet Wall Printers
Inkjet wall printers are among the most common types in the market. They use inkjet technology to create stunning graphics on walls and other surfaces. These printers are known for their versatility and the ability to produce high-resolution images. Such printers use water-based or solvent-based inks, and they can offer a wide color gamut, making them suitable for a variety of design styles. It is versatile and can handle different types of surfaces. Inkjet wall printers are often used for residential interior design, as they offer an array of color options and can reproduce intricate details with precision.
UV Wall Printers
UV wall printers are designed to use ultraviolet (UV) ink that cures instantly when exposed to UV light. This technology is known for its durability and resistance to fading, making it a popular choice for outdoor applications. UV inks dry quickly and are long-lasting, making them ideal for outdoor projects, and they can deliver vibrant and sharp colors. These machines can print on a variety of materials, including rigid substrates. UV wall printers are commonly used for outdoor signage, large-format graphics, and applications that require resistance to harsh weather conditions.
Eco-Solvent Wall Printers
Eco-solvent wall printers use eco-solvent inks that are less harmful to the environment than traditional solvent inks. These printers are favored for their durability and are often used for outdoor advertising and signage. Eco-friendly inks emit less volatile organic compounds (VOCs), so they are very durable and suitable for outdoor use. This ink offers a good balance between color quality and environmental impact. Eco-solvent wall printers are a popular choice for businesses that require long-lasting graphics without compromising on environmental responsibility.
Portable Wall Printers
Portable wall printers are designed for those who require mobility and versatility. These compact machines can be moved easily from one location to another, making them a practical choice for businesses that need to print on various walls. This kind of printer usually has a compact and lightweight design, making it easy to transport. Some models have wheels for easy mobility, while others are battery-powered and require no electrical outlet. They are perfect for live projects and events. Portable wall printers are ideal for businesses that participate in trade shows, events, or require on-site wall printing services.
*Wall printers have the potential to revolutionize the wall printing and interior design industries and create wall prints that are both aesthetically pleasing and functional. A wall printer is a large-scale machine that uses a gantry system to precisely control the extrusion of material in the form of a three-dimensional structure.
*The printer can produce precise and strong prints without additional manual labor or multiple steps. With this technology, architects and designers are now able to push the boundaries of what is achievable in terms of wall printing. They can design and construct stunning wall art that stands out from conventional printing techniques. By combining state-of-the-art technology with creative design, it can help reduce costs and time while also creating unique pieces of art.
*With their ability to print large-scale patterns, textures, and intricate shapes, it is sure to be a game-changer in the wall-printing and interior design industries. Besides the ability to print large-scale patterns, textures, and intricate shapes, 3D vertical wall printers offer a range of additional benefits. For instance, they provide greater accuracy than manual painting methods, allowing designers to create complex patterns faster.
Wall Printer Parameters
|
Machine Name |
Portable Wall Printer Machine |
|
Print Size |
Standard 3m, can be extended to 3.5m * any width |
|
Print Head Manufacturer |
EPSON |
|
Print Head Type |
DX10/DX7 Optional |
|
Printhead Quantity |
1~3pcs |
|
Machine Power |
350W |
|
Voltage |
110V-220V(mobile power can be used) |
|
Print Resolution |
360*720dpi / 720*1440dpi / 1080*1440dpi / 1440*2880dpi |
|
Ink Color |
C-M-Y-K-W |
|
Print Speed |
6~16 sqm/h |
|
Main Board |
8-core high-speed CPU,4GB Memory,120G SSD |
|
Image Format |
PSD,JPG,JPEG,PNG,TIF,AI and PDF etc. |
|
Machine Weight |
Main machine 15kg, guide rail 4 * 8kg, base shaft 15kg |
|
Output Mode |
Wired transmission, printing controlled by computer |
|
Key Components |
1.5m guide rail with four sections,1 laser locator,2 ultrasonic probes,3 Imported servo motor,1 reducer |
|
Apply |
Wall Surface:Putty wall surface, Latex paint wall, Big white wall, Imitation porcelain wall. |
|
Other Media:Glass, tile, board, Acrylic, PVC and metal plates etc. |
|
|
3D/5D Print Function |
Yes (can simulate printing) |
|
Wall Detection Function |
Wall detection function automatic hyperboloid sensor, up and down bidirectional |
|
Wall detection function detection of ground concave and convex, accuracy up to |
|
|
1 mm |
|
|
Data Recovery After Power Failure |
Yes (the software stores data in real time and will not scrap the previous print due to power failure) |
|
Nozzle Inspection Function |
Yes (software check head condition) |
|
Color Calibration Function |
Yes (Software adjust color) |
|
Print Distance Adjustment Function |
Yes (print size and distance can be adjusted by software) |
|
UPS Battery Function |
Yes (Customer can prepare one) |
|
Print Location Function |
Yes (laser red cross positioner to print the picture to the certain position) |
|
Horizontal Regulation Function |
Yes (the track has the function of horizontal adjustment) |
|
Folding and Disassembly |
Yes (1.5 meters after folding, a SUV car can fit; Machine can be disassembled into three parts for easy move) |
|
Image Mosaic Function |
Yes (can achieve seamless picture stitching) |
|
Note: The above parameters are design parameters. In case of any difference, the actual use effect of the equipment shall prevail. |
|
*Wall printer allows for inexpensive and accurate indoor and outdoor mural painting on any surface material, making it a favored choice among building owners and artists alike.
*Wall printer can work with any digital image in a standard format, such as jpeg, vector files (like adobe illustrator or eps), or tiff files, offering flexibility for graphics and art professionals.
*The untapped potential of wall printing lies in its ability to bring success to others by creating customized and unique designs for individuals and businesses.
*The wall printer can produce large murals or images at a low cost of only about 25 cents per square foot in ink.
*The wall printer saves time for artists by allowing them to create digitally before transferring their designs onto walls, enabling them to complete large murals or paintings in just a couple of hours instead of spending weeks on the project.
*A wall printer is a specialized device that can be used to paint, draw, or design art directly on walls. This technique eliminates the need for a large number of paint brushes, as well as the use of a compressor and the stencils that come with it.
Today, where technological progress continues rapidly, the equipment used in the decoration and construction sectors also gets its share of these developments. Especially wall printing machine and floor printing machine attract the attention of users by offering creative and fast solutions in this field. Below, we will focus on the usage areas of wall printing machines and how these devices have revolutionised the industry.
Home and Office Decoration
The wall printing machine is an excellent option for applying original designs to walls in home and office spaces. Whether natural landscapes, abstract artworks or cute characters for children's rooms – this machine makes it easy to transfer all kinds of images onto walls.
Staffing of Commercial Spaces
Commercial venues such as restaurants, cafes, hotels and shops can use the wall printing machine to impress the customer base and build a loyal customer base. Corporate colours, logos or images in accordance with certain themes can be quickly applied to the walls with this machine.
Outdoor Advertising
Advertising boards can be designed much more effectively thanks to the wall printing machine. By creating prints in high resolution and vivid colours even on large surfaces, the message of the advertisement is conveyed much more effectively.
Concert and Show Areas
At large concerts or festivals, areas such as backstage, entrance doors or rest areas can be decorated with special designs thanks to the wall printer. This adds authenticity to the events and leaves unforgettable memories for the participants.
Parks and Recreation Areas
City parks, botanical gardens or children's playgrounds can be coloured with the wall printing machine. Designing fun playgrounds, especially for children, becomes much easier and more impressive thanks to this technology.
University and School Campuses
In educational institutions, the wall printing machine can be used to reflect the mission, vision or prominent values of the school or university. In addition, the use of wall prints to provide directions around the campus is a great convenience for students and visitors.
Choosing the Right Wall Printing Solution
Factors to Consider when Selecting a Wall Printing Solution
When it comes to choosing the right wall printing solution, several factors should be considered. These include the size and complexity of the desired design, the type of surface, budget considerations, and the expertise of the printing service provider. It's essential to find a solution that meets your specific requirements and delivers the desired results.
Comparing Different Wall Printing Technologies
Various wall printing technologies exist in the market, each with its own advantages and limitations. Some technologies utilise direct-to-wall printing, while others involve printing on different materials that are then installed on the wall. Researching and comparing the different technologies will help you make an informed decision that aligns with your project goals.
Case Studies: Successful Implementations of Wall Printing Solutions
To gain a better understanding of how wall printing can be successfully implemented, exploring real-life case studies can be incredibly insightful. There are numerous examples of businesses and homeowners who have utilised wall printing to elevate their spaces and achieve remarkable results. These case studies serve as inspiration and provide valuable lessons in utilising this innovative technology effectively.
10 Common Issues about Wall Printers
The Wall Printer Can't Print
A brand new wall printer, powered up and it won't print. Many customers find us for help because they purchased a wall printer from another manufacturer and without technical support, they can't contact the manufacturer and the machine doesn't work. That's why it's important to choose a supplier who can provide technical support. Even if you have a very good quality printer, if you haven't had good training, you won't be able to get the best performance out of it. You're bound to run into numerous problems within the first month, and if you don't get a solution, you probably won't be able to continue using it.
Broken Needle of Printhead
A broken needle means that a thin vertical line like a needle appears on the image during the printing process. This is due to a blockage in some of the printhead nozzles causing the ink to not jet properly. The solution is to perform one or more ink pumps and use a test strip to determine if printing can continue.
Incorrect Color
The color of the image printed on the wall differs greatly from the image on the computer screen. First, the image on the wall is imaged by ink (CMYK 4 inks), while the image on the screen is imaged by RGB. It is normal for the difference in color to occur because of the different imaging methods. Second, If
Color Crosstalk
Crosstalk means that other colors appear in the printer nozzle where one color of CMYK should appear. The cause of this phenomenon is most likely a damaged printhead. The use of high-quality printheads can effectively solve this problem.
The Nozzle Does Not inkjet
When the printer does the pumping operation, the inkjet can not be properly ejected from the printer nozzle. The cause of this is a high probability of blockage of the printhead. It is recommended that regular maintenance of the printhead, not to let the ink in the printhead dry resulting in clogging of the printhead. High-quality printheads can effectively reduce the probability of printhead clogging.
Pass Road
White streaks appear on the printed image. There are two main reasons: UV lamp power is not enough to dry ink. Or the machine has a small offset during the printing process, resulting in the appearance of Pass Road. If your printer has such a problem, please contact the engineer to solve it.
Body Shaking
The movement of the wall printer is mainly in the horizontal direction and the vertical direction of the printhead. If the machine body shakes, it is likely that the sensor in the vertical direction senses that the wall is uneven and thus is constantly adjusting the distance from the wall, causing the machine to shake. If the machine is printed outdoors, strong winds can also cause the machine to resonate and shake. The use of high-quality body materials increases the machine's counterweight, and can effectively solve the problem of machine shaking.
Bad Print Accuracy
Print accuracy is not enough, the details are not stunning. This reason is directly related to the technology and quality of the printer. The use of professional RIP software can restore the original color and detail of the image with high precision.
Printheads Hitting the Wall
Printheads hitting the wall can cause damage to the printhead. It is recommended to replace the sensor with better quality and use dual sensors to sense a greater range, reducing the probability of printheads hitting the wall. In addition, the printhead hitting the wall is also related to the operator's experience, and receiving professional technical training, but also reduces the probability of the printhead hitting the wall.
Other Machine Movement Problems
The wall printer has hundreds of printing parts, they are often carried by the operator, it is likely that because of transportation, impact or longer use of the line aging, and other reasons encounter a variety of bizarre adverse reactions, realizing the movement of abnormalities. It is recommended to contact a professional after-sales team to solve the problem.
Our Certificate
Below are our certificate:

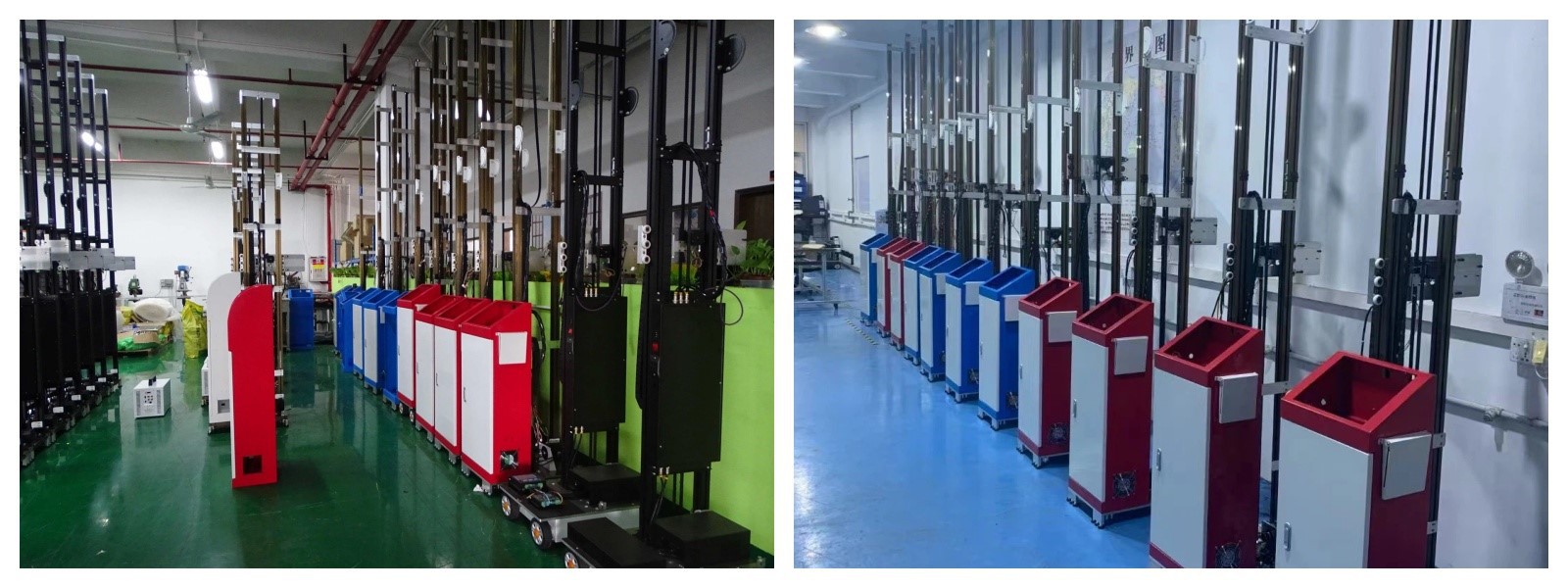

Our Factory
