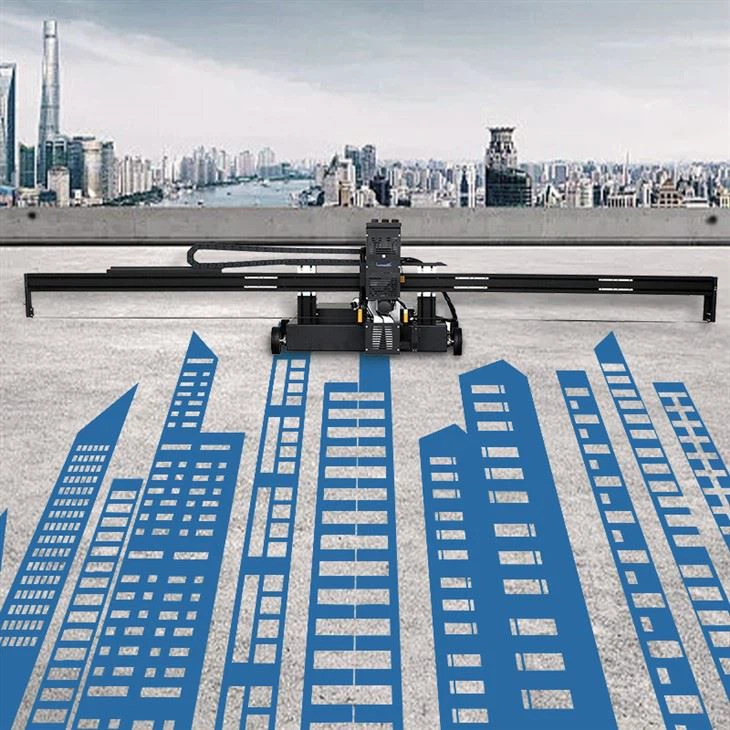

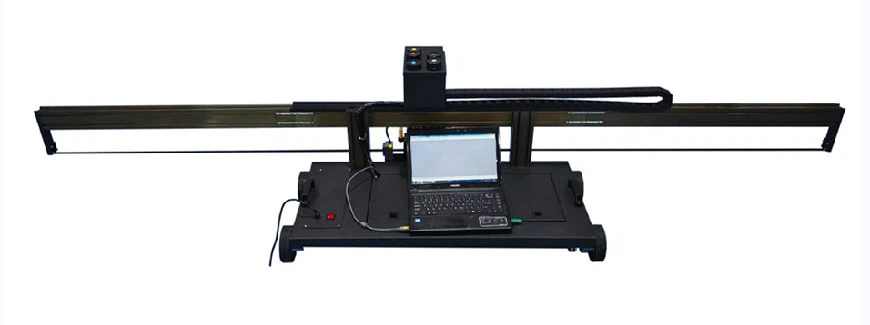

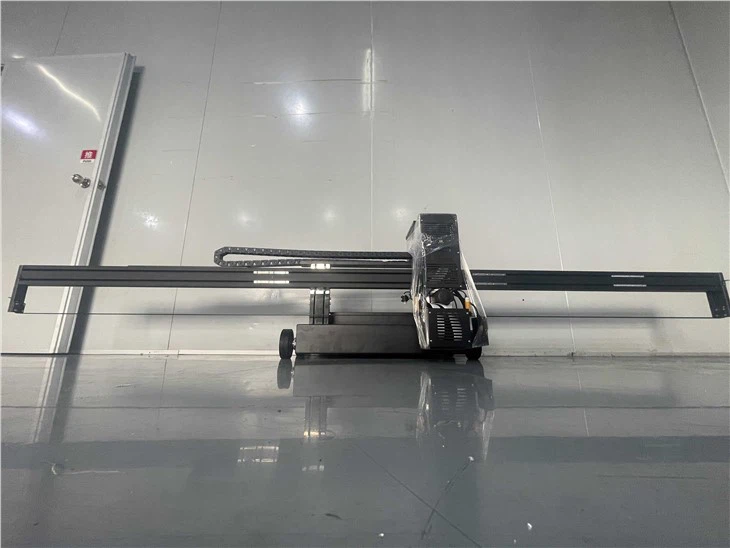

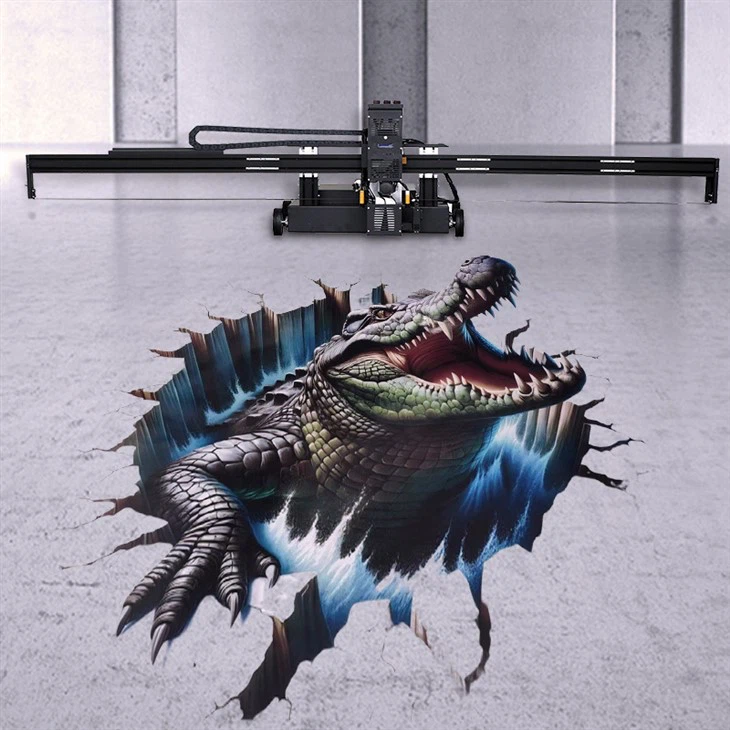

Automatic 3D Floor Printer machine

Direct digital industrial printing of horizontal floor surfaces.

Floor printer is a new digital printing system designed specifically to draw any graphics on a floor surface. TFP uses UV printing technology to print on floors in a variety of materials, including wood flooring, cement, tile, asphalt, brick, lime, epoxy, etc. With the help of a tracking system, TFP can be printed on curved and uneven brick surfaces.

Floor printing is a more economical and environmentally friendly way of floor decoration

Instead of hiring expensive hand-drawn artists, it simply feeds graphics into a computer, sets specific parameters, and prints quickly directly on cement, brick, asphalt, sheet metal and other materials. The ground printer uses environmentally friendly UV ink, which can restore the color and detail of the picture with high quality.

Brand	TANYU	Model	TFP1000
Use ink	Special environmentally friendly organic ink	Operation method	Wired printing
Transport	Folding	Power consumption	No load 20W, maximum 250W
Curved surface tracking	Hyperboloid Banner sensor, up and down bidirectional sensing Ink supply system	Negative pressure system	single color single supply, 5 color ink tank
Machine size (mm)	length 2500width 500height 300 (Can be folded in half)	Print Heads	Epson Double heads
Noise	Standby＜20DBA, drawing＜72DBA	Support pictures	Support mobile phone/ digital camera photos and network download
Print size	Width 2.5m, length unlimited
Wall surface	Interior and exterior wall putty wall, latex paint wall, white, imitation porcelain wall, rice paper, canvas, wall clothing, painted glaze, Shell powder, colorful paint, etc. wall glass, ceramic tiles, wooden boards, acrylic, PVC and metal plates, etc.
Print resolution	360X720DPI/720X720DPI/720X1080DPI/720X1440DPI/1440X2880DPI

1. All aluminum mechanism, stable structure, strong standing base, not easy to deformation.

2. Double ultrasonic adaptive head. Automatic adjustment of head and wall distance, high precision.

3. Imported servo motor, ensure mechanical transmission accuracy, high efficiency, durable printing.

4. Import silent drag chain, can greatly reduce wear line speed prolong service life, low noise machine operation.

Main Features

Printing on uneven surfaces

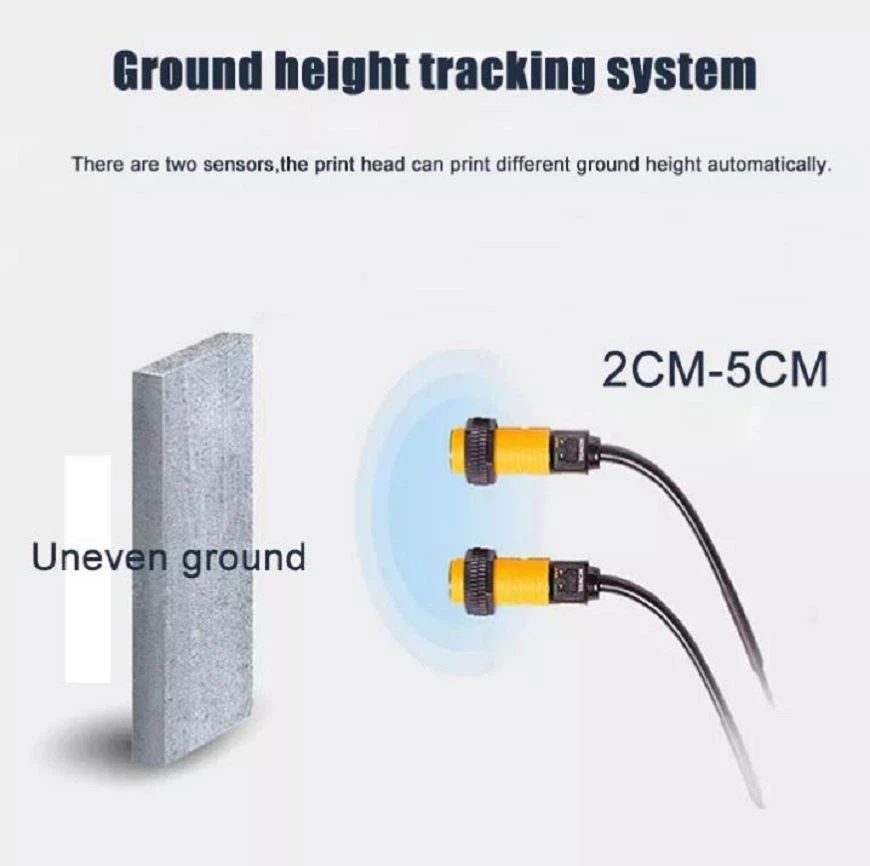

To ensure printing quality, the floor printer is equipped with two high-precision sensors that automatically sense the distance between the print head and the floor. Even on uneven floors, it will automatically flex (up to 120mm) to maintain the best distance from the ground to ensure

Best print quality.

Suitable for all kinds of substrates

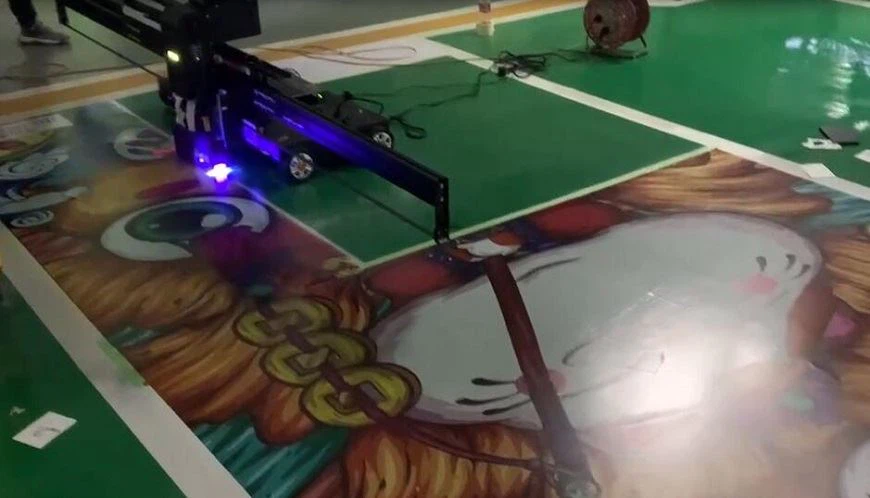

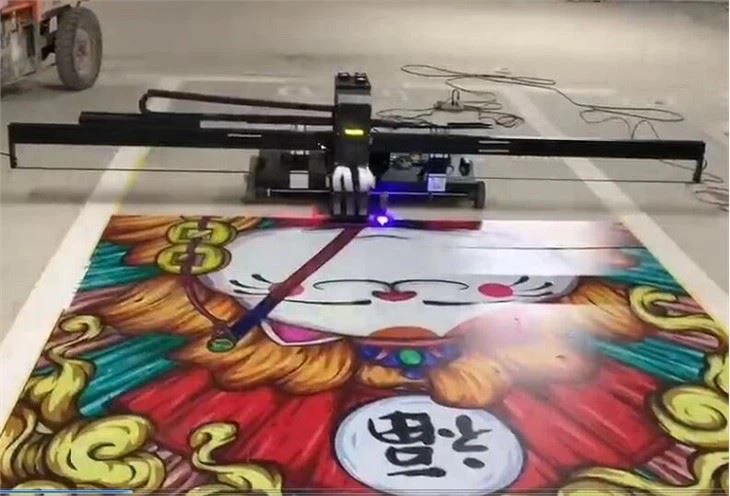

Floor printer uses LED UV printing technology, can be printed on a variety of materials. Such as: wood floor, tile, brick pavement, plastic, cement and so on. Just place it on the ground, import the image and set the parameters, and TFP will automatically print out the image you need.

Image mosaicing

Our machines are equipped with image splicing capabilities for printing wide-format images beyond the limits of mechanical size. Combined with laser positioning,

You can expand your image infinitely on a horizontal plane, using your imagination. Because TFP can print indefinitely on a vertical plane, with image Mosaic technology, you won't have to worry about the size of your image print.

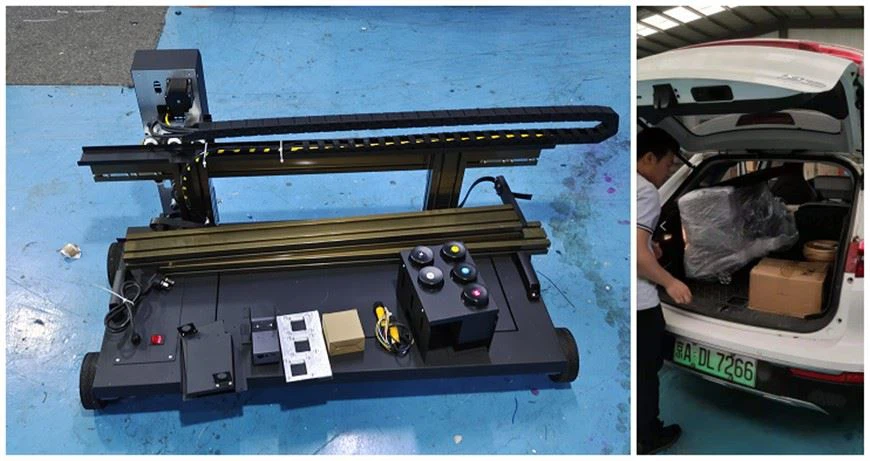

In order to carry easily, the machine can be folded. The folded volume is very small, and it can be easily placed in the trunk of a B-class car.

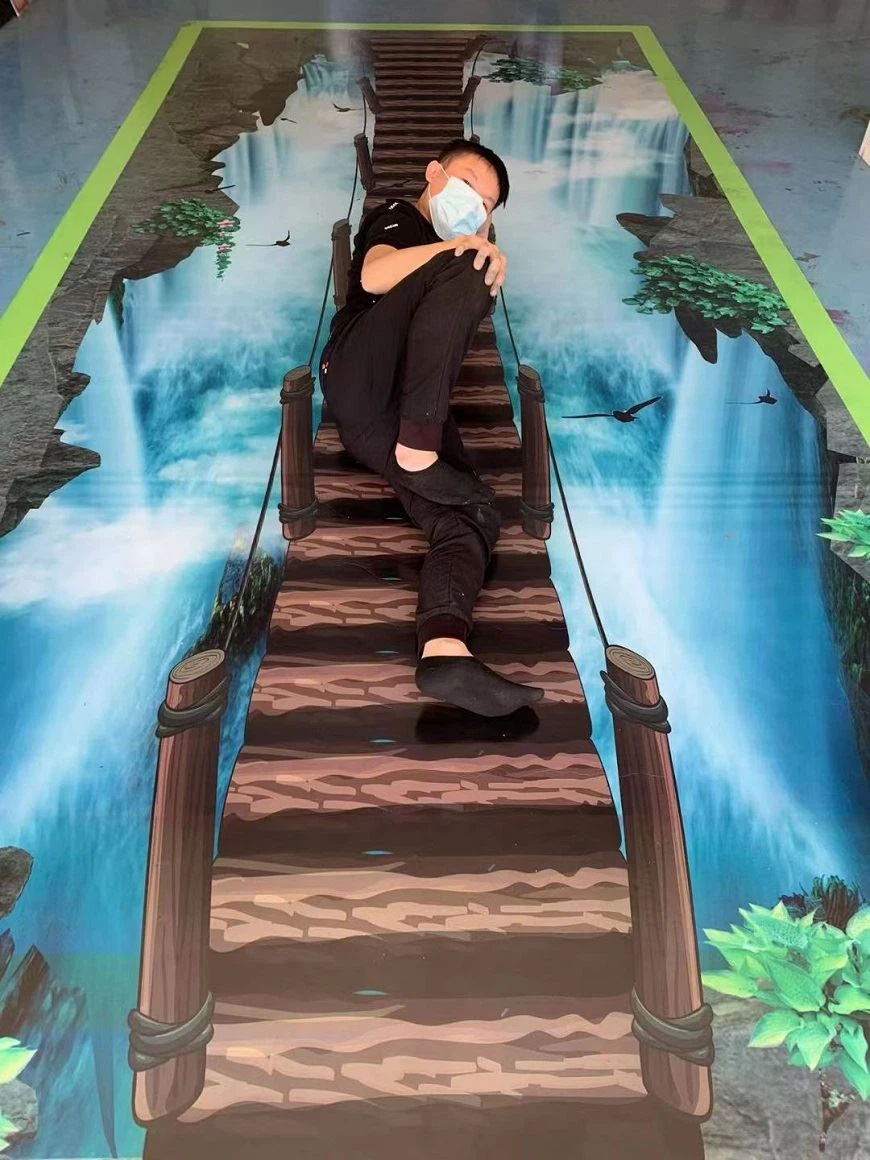

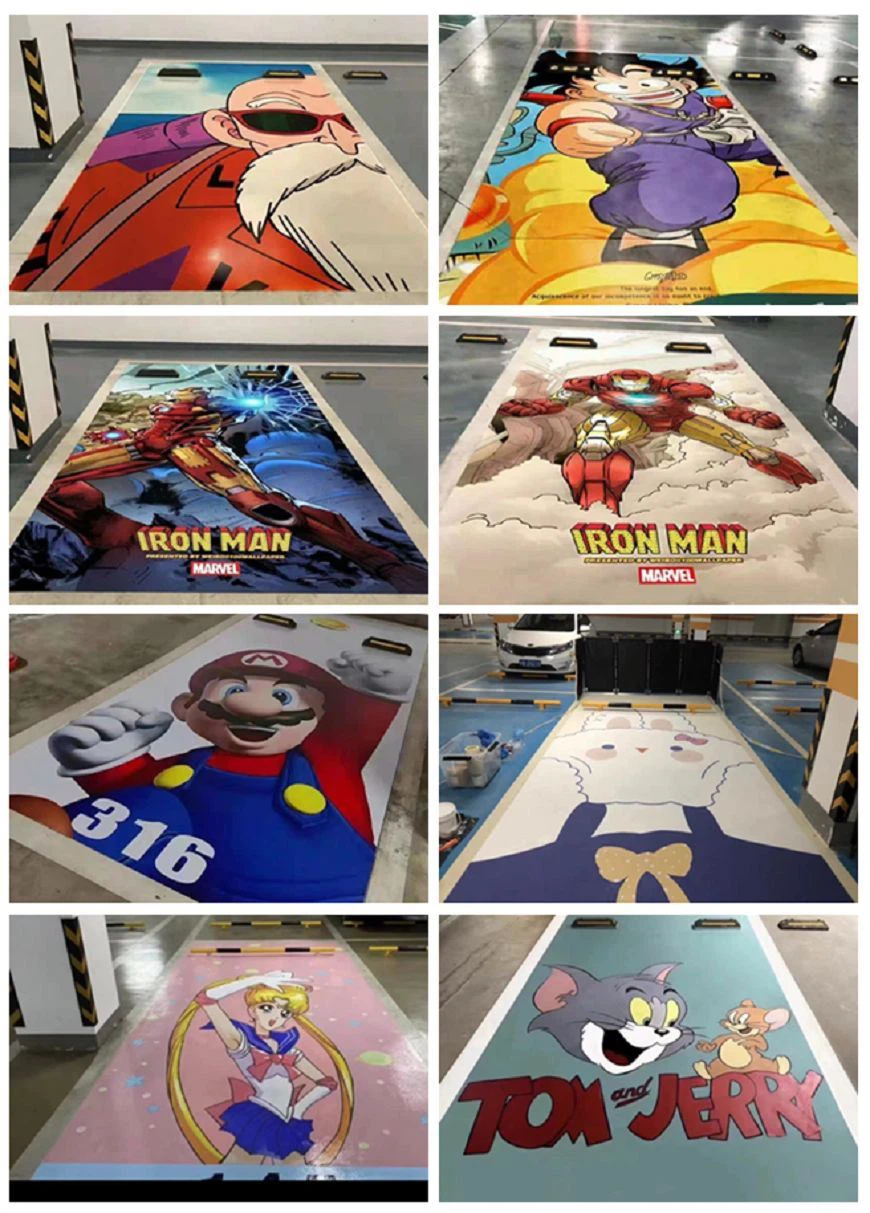

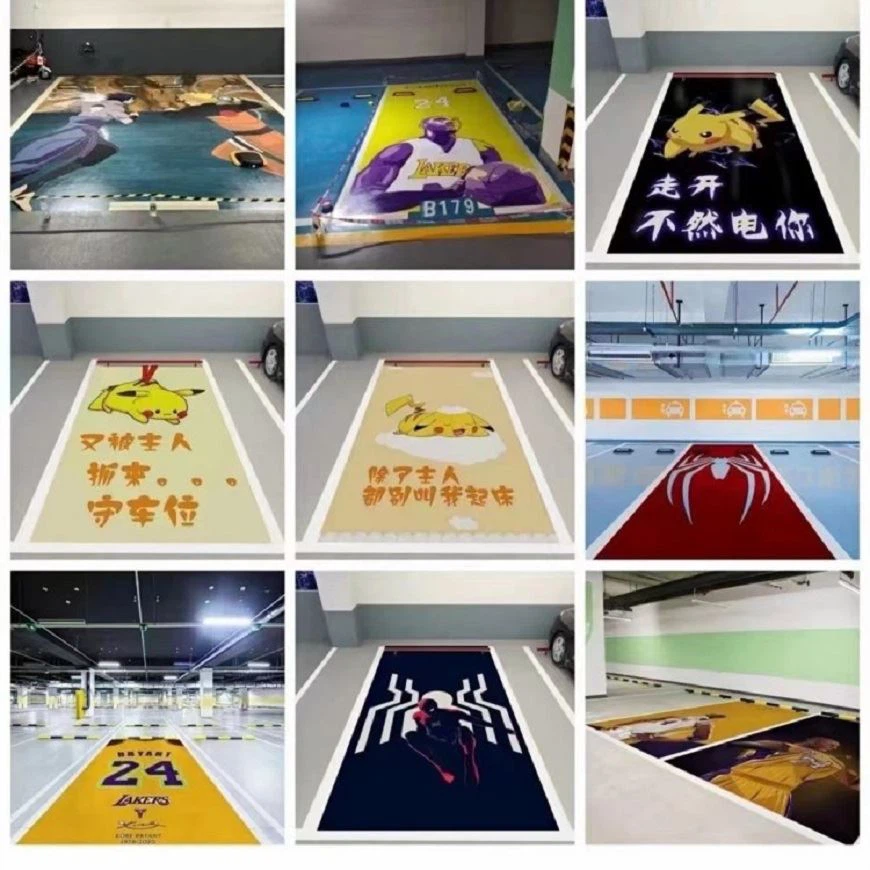

Customer Case

If you can't wait to start your business, please don't hesitate to contact us.

FAQ

What does the order list include?

The shipping list includes a ground printer, a rail stand, and a given set of inks.

Floor printers made in China are cheap but not good quality, right?

At present, there are many enterprises providing ground printer products in The Chinese market, but most of them do not have the ability of research and development, and cannot meet the requirements of national production quality. So if you buy a machine of poor quality, we are sorry for the trouble our countrymen have caused you.

But fortunately, you buy the leading TANYU automatic floor printer machine in China, our market in China has exceeded 50%, and is still growing at a high speed.

How many square meters can a set of ink print?

Because ink can be quickly and cleanly refilled at any time, there is almost no limit to the amount of ink you can use. As for the price, experience shows that the cost of ink varies between 2 and 5 USD per square metre.

Does the ink expire?

UV ink will last at least 12 months after delivery.

Can I change the ink for another brand?

It is not recommended to change to another brand of ink, because ink that has not been adjusted and calibrated will not produce good drawings.
